Safe
workpiece handling
Place and position heavy workpieces safely and ergonomically.
Products
CNC LiftArm 125L

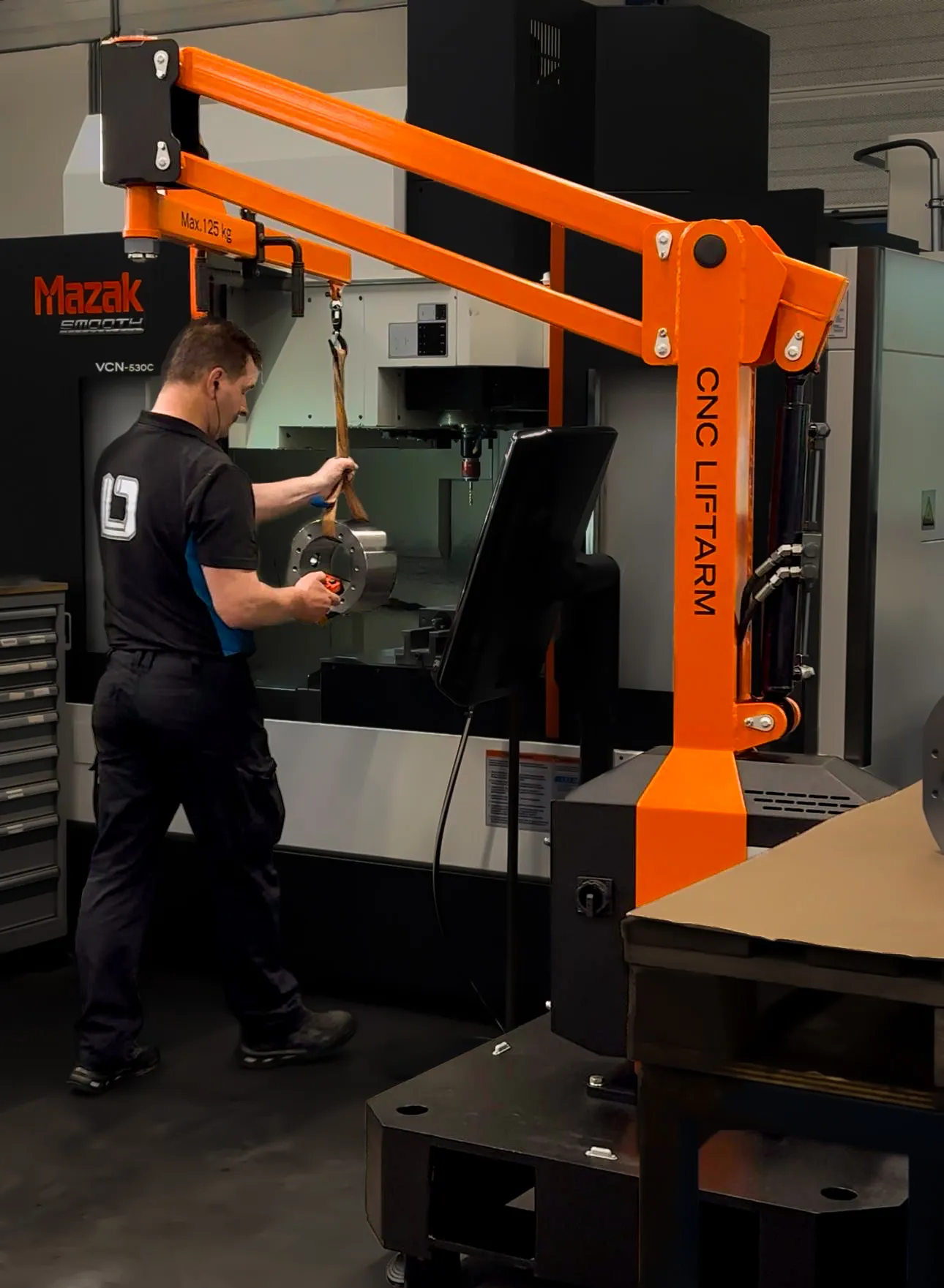

The CNC LiftArm is developed for production environments where heavy workpieces have to be positioned safely, under control and accurately around CNC and other machines. The 125L adds an extended reach for a larger working area.
- Maximum load of 125 kg
- 360° rotation
- Optionally movable with a pallet truck
Increased
productivity
Faster, safer and more accurate workpiece positioning than lifting by hand.
Improved
ergonomics
Less physical strain on operators when moving heavy workpieces.
Key features of the CNC LiftArm
We supply compact and flexible lifting solutions for workshops where ergonomics, reach around the machine and accurate positioning are essential. Our systems are developed for real production environments: compact, practical and ready to use right next to the machine.
Maximum load
The CNC LiftArm 125L has a maximum load of 125 kg.
Accurate positioning
Hydraulic system with two-speed push buttons for accurate placement of the workpiece.
Easily movable
Can be moved between several machines for maximum flexibility.
360° rotation
Flexible positioning, also in tight working areas.
Designed for various industrial environments
The CNC LiftArm is designed for various industrial environments, with different processes and space requirements. Whether you keep it in one place or move it regularly, both are possible and simple!
Fixed on the floor
Movable by forklift
FAQ
Frequently asked questions
Is your question not listed?
Get in touch with us.
What is a lifting arm?
A lifting arm is a mechanical or hydraulic lifting device used to safely lift and position heavy workpieces. CNC LiftArm is specifically designed for CNC manufacturing, where workpieces need to be handled accurately in limited space around the machine.
How do I choose the right lifting solution?
Start with the weight of your heaviest workpiece and the space you have around the machine. Up to 125 kg the CNC LiftArm 125 is sufficient; up to 250 kg you need the CNC LiftArm 250. If the arm has to reach further around the machine, choose the 125L with its extended reach.
Also consider whether the arm stays at one machine or has to move between machines. Every model is optionally available with a movable base plate for use with a pallet truck.
Should I choose a fixed or movable CNC LiftArm?
Choose the fixed version when the arm serves one machine or one fixed workstation. It is bolted to the floor and takes up the least space.
Choose the movable version when several machines share one arm. The base plate is designed for a pallet truck, so the arm can be repositioned in minutes without any installation work.
Is a lifting arm only suitable for CNC machines?
No. CNC LiftArm is designed for CNC manufacturing, but it is used anywhere heavy workpieces have to be handled accurately: loading and unloading machining centres, positioning parts on measuring machines, and general metalworking such as deburring, assembly and material handling between workstations.
What makes CNC LiftArm different from other lifting solutions?
An overhead crane or jib crane needs a supporting structure, installation work and often a shared queue: the operator waits for the crane to become available. CNC LiftArm stands next to the machine, is ready to use straight away and is operated by the operator alone.
The hydraulic system with two-speed push buttons allows the workpiece to be placed precisely, and 360° rotation keeps it usable in tight spaces around the machine.
When should I choose the long-reach version?
Choose the CNC LiftArm 125L when the arm has to cover a larger working area around the machine — for example when the machine table is deep, when the arm has to reach past a chip conveyor, or when one arm serves both the machine and an adjacent workbench.
The 125L has the same maximum load of 125 kg as the standard 125, but with an extended reach.
